A charging problem can quickly turn from a small inconvenience into a major headache. You plug your iPhone 16 Plus into the charger expecting to see the battery icon appear, but nothing happens. The cable feels connected, yet the battery percentage does not increase. In some cases, the phone charges for a few seconds and then disconnects, while in others, the charging port seems completely unresponsive.
The charging port is one of the most frequently used parts of any smartphone. Every day, cables are inserted and removed, the phone is carried in pockets and bags, and small particles such as dust and lint can slowly build up inside the connector. Over time, these factors can affect the connection between the charging cable and the iPhone.
The iPhone 16 Plus comes with a USB-C charging port, offering faster charging speeds and better compatibility with modern accessories. However, like any hardware component, it can experience problems caused by dirt, damaged accessories, software errors, moisture, or physical damage.
Before replacing the charging port or visiting a repair center, there are several steps you can try at home. Many charging problems are caused by simple issues that can be fixed without spending money on repairs.
This guide explains the most common reasons why your iPhone 16 Plus charging port may stop working and provides step-by-step solutions to help you identify and fix the problem.
Why Is My iPhone 16 Plus Charging Port Not Working?
When an iPhone stops charging, the problem is not always the charging port itself. Several different components work together to deliver power to your device, including the charging cable, adapter, USB-C connector, battery, and internal charging system.
Here are some of the most common causes of charging port problems:

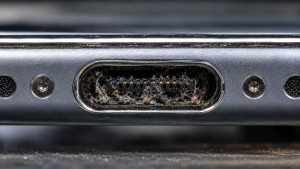

1. Dust and Lint Inside the Charging Port
One of the most common reasons an iPhone does not charge properly is debris inside the USB-C port.
Small particles from your pocket, bag, or environment can collect inside the port over time. Even a thin layer of lint can prevent the charging cable from making a proper connection.
Common signs of a dirty charging port include:
- The cable feels loose when connected
- Charging works only when the cable is moved
- The phone charges intermittently
- The connector does not fully insert into the port
Cleaning the port carefully can often solve the issue.
2. Faulty Charging Cable
A damaged charging cable is another common cause of charging problems.
Cables experience daily stress from bending, pulling, and twisting. Internal wires can become damaged even if the outside of the cable looks normal.
A faulty cable may cause:
- Slow charging
- Random disconnections
- No charging response
- Charging only at certain angles
Before assuming your iPhone has a hardware problem, always test it with another reliable USB-C cable.
3. Damaged Power Adapter
Many people focus on the cable and phone but forget about the charging adapter.
A faulty power adapter may stop providing enough power to charge your iPhone correctly.
Try connecting your iPhone 16 Plus with:
- A different USB-C wall charger
- A laptop USB-C port
- A power bank
- Another electrical outlet
If your phone charges normally with another power source, your original adapter may be the problem.
4. Software Glitches
Although charging problems are often caused by hardware, software issues can sometimes interfere with charging.
Temporary system errors may affect:
- Accessory detection
- Charging communication
- USB-C functionality
Restarting your iPhone or installing the latest iOS update can sometimes restore normal charging.
5. Moisture Detection
Modern iPhones include safety features that protect internal components from liquid damage.
If moisture is detected inside the USB-C port, charging may be disabled temporarily. This prevents electricity from causing corrosion or damaging internal circuits.
You may see a warning message informing you that liquid has been detected.
In this situation, the safest solution is to allow the port to dry naturally before connecting the charger again.
Signs Your iPhone 16 Plus Charging Port Has a Problem
Understanding the symptoms can help you identify the cause faster.
Some common signs include:
The iPhone Does Not Charge at All
The most obvious sign is when nothing happens after connecting the charging cable. The battery icon does not change, and the phone shows no response.
This could be caused by:
- A damaged cable
- A blocked charging port
- A faulty adapter
- Internal hardware failure
Charging Starts and Stops Repeatedly
If your iPhone keeps connecting and disconnecting while charging, the connection between the cable and port may not be stable.
Possible causes include:
- Dirt inside the port
- A loose connector
- A damaged USB-C cable
- Worn charging port components
Charging Only Works at a Certain Angle
When a phone only charges if the cable is positioned in a specific way, it usually indicates a connection problem.
The most common reasons are:
- Debris preventing proper contact
- A damaged cable connector
- Physical damage inside the charging port
Avoid forcing the cable into different positions because this can make the damage worse.
Computer Does Not Recognize the iPhone
The USB-C port is not only used for charging. It also allows data transfer between your iPhone and other devices.
If your computer does not detect your iPhone, the issue may be related to:
- The cable
- USB-C port damage
- Software settings
- Internal hardware problems
Step-by-Step Solutions to Fix iPhone 16 Plus Charging Problems
Before taking your device for repair, try these troubleshooting steps.
Step 1: Check the Charging Cable
Start with the simplest possible solution.
Inspect your USB-C cable for:
- Frayed sections
- Bent connectors
- Broken insulation
- Signs of overheating
Then try another cable that you know works properly.
If another cable charges your iPhone normally, your original cable needs replacement.
Step 2: Try a Different Charger
Testing another power adapter can help determine whether the problem is with your charger or your phone.
Use a trusted USB-C charger and connect your iPhone again.
Avoid extremely cheap chargers because poor-quality accessories can cause unstable charging and may damage your device over time.
Step 3: Restart Your iPhone 16 Plus
A simple restart can fix temporary software issues affecting charging.
To restart your iPhone:
- Press and hold the Side button and either Volume button.
- Wait until the power-off slider appears.
- Slide to turn off the device.
- Wait a few seconds.
- Turn the iPhone back on.
After restarting, connect the charger and check whether the problem is resolved.
Step 4: Clean the iPhone 16 Plus Charging Port Carefully
A blocked USB-C port is one of the easiest problems to fix, but it is also one of the most overlooked. Many people replace cables or assume the charging port is damaged when the actual issue is simply accumulated dust and lint.
Your phone spends a lot of time in pockets, bags, and different environments where small particles can enter the charging port. Over time, this debris gets compressed inside the connector and prevents the charging cable from making full contact.
Before cleaning the port, turn off your iPhone and disconnect any accessories.
Tools you can use:
- Wooden toothpick
- Plastic cleaning tool
- Soft brush
- Anti-static brush
Avoid using:
- Needles
- Paper clips
- Metal pins
- Screwdrivers
- Sharp objects
Metal tools can scratch the internal contacts and cause permanent damage to the USB-C connector.
How to clean the charging port:
- Turn off your iPhone 16 Plus.
- Hold the phone under a bright light.
- Look inside the USB-C port for visible dust or lint.
- Carefully remove debris using a wooden or plastic tool.
- Use a soft brush to remove remaining particles.
- Turn your phone back on and test charging.
Be patient during this process. Forcing anything inside the port can create more problems than it solves.
Step 5: Check for Liquid or Moisture Inside the Port
Water and electronics do not mix well. Even a small amount of moisture inside the charging port can prevent your iPhone from charging.
The iPhone 16 Plus can detect moisture and temporarily disable charging to protect internal components.
You may see a notification warning that liquid has been detected in the USB-C connector.
If this happens:
- Disconnect the charging cable immediately.
- Place your iPhone in a dry area.
- Allow the charging port to air dry naturally.
- Wait several hours before trying again.
Avoid common drying methods that can cause damage:
- Do not use a hair dryer.
- Do not place the phone in rice.
- Do not insert tissues or cotton buds inside the port.
- Do not use heat to dry the connector.
Once the port is completely dry, reconnect the charger.
Step 6: Update iOS to the Latest Version
Your iPhone’s operating system controls many hardware functions, including accessory communication and charging management.
If your iPhone 16 Plus has outdated software or a temporary system bug, updating iOS may solve charging-related issues.
To check for an update:
- Open Settings.
- Tap General.
- Select Software Update.
- Download and install any available update.
Make sure your phone has enough battery power or connect it to wireless charging before starting the update process.
After updating, restart your iPhone and test the charging port again.
Step 7: Test Wireless Charging
Testing wireless charging is a useful way to understand whether the problem is related to the charging port or another component.
If wireless charging works but USB-C charging does not, it usually means:
- The battery is functioning.
- The phone can receive power.
- The issue is likely related to the USB-C port or charging system.
Wireless charging can be used as a temporary option while arranging a repair.
However, it does not fix the underlying charging port problem.
Step 8: Reset All Settings
Sometimes charging issues can happen because of incorrect system settings or software conflicts.
Resetting all settings returns system preferences to their default values without deleting your photos, apps, contacts, or personal files.
To reset settings:
- Open Settings.
- Tap General.
- Select Transfer or Reset iPhone.
- Choose Reset.
- Tap Reset All Settings.
Your iPhone will restart after completing the process.
Test the charging port again once the reset is complete.
Step 9: Inspect the Charging Port for Physical Damage
If cleaning and software troubleshooting do not solve the problem, inspect the USB-C port for signs of physical damage.
Possible warning signs include:
- Loose charging connection
- Bent internal contacts
- Broken connector parts
- Corrosion marks
- Burn marks
- Damage after a drop
Physical damage often requires professional repair because the charging port is connected to internal components of the phone.
Trying to repair the connector yourself without proper tools can permanently damage the motherboard.
Step 10: Check Battery Health
Although charging port problems are common, sometimes the battery itself is responsible for charging issues.
A damaged or heavily degraded battery may:
- Charge extremely slowly
- Drain quickly after charging
- Shut down unexpectedly
- Overheat during charging
- Stop accepting power
You can check battery information by going to:
Settings → Battery → Battery Health & Charging
If your battery condition is poor, a battery replacement may be needed instead of a charging port repair.
When Does an iPhone 16 Plus Need Charging Port Repair?
After completing all troubleshooting steps, some problems require professional attention.
You should consider repair if:
- The phone does not charge with multiple working cables.
- The USB-C port feels loose.
- The cable disconnects constantly.
- The port has visible damage.
- The phone was exposed to water.
- The computer cannot detect the iPhone.
- Wireless charging works but wired charging does not.
- Charging stops completely after a drop or impact.
A professional technician can inspect the charging system and determine whether the issue is caused by:
- Charging port damage
- Charging flex cable failure
- Charging IC problems
- Logic board damage
- Battery failure
Correct diagnosis is important because replacing the wrong component can waste money and time.
Professional iPhone 16 Plus Charging Port Repair in UAE
When a charging port stops working, many people try replacing accessories repeatedly without finding the real cause. If basic troubleshooting does not solve the problem, professional diagnosis is the safest option.
At Just Fix UAE, customers can get expert iPhone repair services for charging problems and other hardware issues. Our technicians inspect devices carefully to identify the exact reason behind charging failures before recommending a repair solution.
Whether the issue is caused by a damaged USB-C port, liquid exposure, worn components, or another internal problem, professional repair can help restore your iPhone’s normal performance.
Why choose Just Fix UAE?
- Experienced mobile repair technicians
- Accurate device diagnosis
- Quality replacement parts
- Reliable repair solutions
- Transparent service
- Support for different iPhone repair issues
A damaged charging port should not be ignored for too long. Continuing to use a faulty connector can sometimes lead to additional problems, especially if the issue involves moisture or damaged internal components.
How to Prevent iPhone 16 Plus Charging Port Problems in the Future
After fixing a charging issue, the next step is preventing the same problem from happening again. The charging port is a small but important part of your iPhone, and taking care of it can significantly extend its lifespan.
Here are some simple habits that can help keep your iPhone 16 Plus charging port working properly.
Keep the USB-C Port Clean
Dust and lint are among the biggest causes of charging problems. Regularly checking the charging port can prevent debris from building up.
If you carry your phone in your pocket, inspect the port occasionally and remove any visible dirt carefully.
Avoid cleaning the port with sharp metal objects because they can damage the internal contacts.
Use High-Quality Charging Accessories
Cheap charging cables and adapters may seem like a good way to save money, but poor-quality accessories can create charging problems.
Low-quality cables may:
- Provide unstable power
- Disconnect frequently
- Wear out quickly
- Damage the charging connection
Always use reliable USB-C cables and adapters designed for safe charging.
Avoid Charging Your iPhone in Wet Areas
Moisture is one of the biggest risks for electronic devices.
Avoid connecting your charger when:
- Your hands are wet
- The phone has been exposed to rain
- The charging port is damp
- You are in a humid environment
Even a small amount of liquid inside the port can interrupt charging and potentially cause corrosion.
Do Not Force the Charging Cable
The USB-C connector should slide into the port smoothly.
If the cable does not fit properly:
- Check for debris
- Inspect the connector
- Avoid pushing it forcefully
Forcing the cable can damage the port and make repairs more complicated.
Remove the Cable Carefully
Pulling the cable aggressively can damage both the cable and the charging port.
Always hold the connector itself when removing the charger instead of pulling from the wire.
This simple habit can prevent unnecessary wear.
Protect Your iPhone from Drops
A strong impact can damage internal components even if the outside of the phone looks fine.
Using a protective case can reduce the risk of:
- Charging port damage
- Internal connector problems
- Screen damage
- Frame bending
Frequently Asked Questions About iPhone 16 Plus Charging Port Problems
Why is my iPhone 16 Plus not charging when I plug it in?
The problem could be caused by several things, including a damaged charging cable, faulty adapter, blocked USB-C port, software issue, moisture detection, or hardware damage.
Start by testing another cable and charger before assuming the charging port is damaged.
How do I know if my iPhone 16 Plus charging port is damaged?
Common signs of a damaged charging port include:
- The phone does not charge with different cables.
- Charging only works at certain angles.
- The cable feels loose.
- USB-C accessories are not detected.
- The port shows visible physical damage.
If cleaning and troubleshooting do not help, the port may require professional repair.
Can I fix an iPhone 16 Plus charging port myself?
Simple problems like dust buildup or a faulty cable can often be fixed at home.
However, replacing the charging port requires specialized tools and technical knowledge. Attempting a repair without experience may damage internal components.
For physical damage, professional repair is usually the safest option.
Why does my iPhone 16 Plus charge only when the cable is moved?
This usually happens because the connection between the cable and charging port is not stable.
Possible causes include:
- Dust inside the port
- Damaged cable connector
- Worn charging port contacts
- Internal port damage
Try cleaning the port and testing another cable first.
Can a software update fix charging problems?
If the issue is caused by a software bug affecting accessory communication, updating iOS or restarting the phone may solve it.
However, software updates cannot repair physical damage to the charging port.
Why does my iPhone show a liquid detected warning?
The iPhone displays this warning when moisture is detected inside the USB-C port.
This safety feature prevents possible damage caused by charging while the connector is wet.
Allow the port to dry completely before reconnecting the charger.
Is wireless charging a solution if my charging port is broken?
Wireless charging can be used as a temporary alternative if the USB-C port is not working.
However, it does not repair the charging port problem. A damaged port should still be inspected and repaired.
How much does iPhone 16 Plus charging port repair cost?
The cost depends on the exact problem, the required parts, and the repair provider.
A technician should diagnose the device first because the issue may be caused by something other than the charging port, such as the battery or charging circuit.
How long does iPhone 16 Plus charging port repair take?
Repair time depends on the damage and the availability of replacement parts.
Many charging-related repairs can be completed quickly after proper diagnosis, but complex issues involving internal components may require additional time.
Final Thoughts
A charging port that stops working can be frustrating, especially when you depend on your iPhone 16 Plus every day. However, the problem is not always as serious as it first appears.
In many cases, simple solutions such as replacing a damaged cable, cleaning the USB-C port, checking the power adapter, restarting the device, or allowing moisture to dry can restore normal charging.
If your iPhone still refuses to charge after trying these steps, the issue may involve a damaged charging port, battery problem, or internal hardware failure. At that stage, professional diagnosis is the best option.
For reliable iPhone repair services in the UAE, Just Fix UAE provides expert solutions for charging issues, damaged ports, battery problems, and other smartphone repairs. Our technicians focus on accurate diagnosis and quality repairs to help restore your device as quickly as possible.
A faulty charging port should not stop you from using your iPhone normally. With proper troubleshooting and professional support when needed, your iPhone 16 Plus can return to reliable everyday performance.
